Subaru Legacy BN/BS (2015-2019) Service Manual: Passenger’s airbag on off indicator light illumination pattern inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Occupant detection system (diagnostics) / Passenger’s airbag on off indicator light illumination pattern inspection

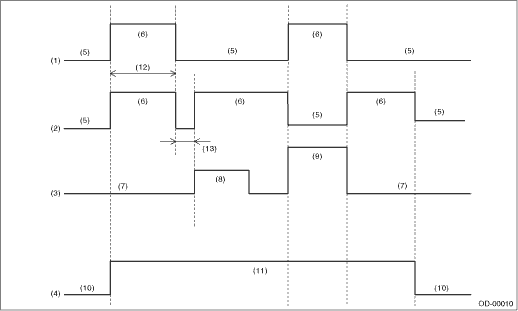

(1)	Passenger’s airbag ON indicator light	(6)	Light ON	(10)	OFF
(2)	Passenger’s airbag OFF indicator light	(7)	Empty	(11)	ON
(3)	Occupant seating	(8)	Child	(12)	Approx. 6 seconds
(4)	Ignition switch	(9)	Adult	(13)	Approx. 2 seconds
(5)	Light OFF

List of diagnostic trouble code (dtc) list

DTCItemNoteB1762OCCUPANT DETECTION MODULE CALIBRATION NOT INITIALIZED Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B1762 OCCUPANT DETECTION MODULE CALIBRATION NOT INITIALIZEDB1763OCCU ...

Read diagnostic trouble code (dtc) operation

Read out DTCs stored in the airbag system and the occupant detection system.1. AIRBAG SYSTEM1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle ...
