Subaru Legacy BN/BS (2015-2019) Service Manual: Removal
1. Remove the collector cover. (1) Carefully pull up the rear of collector cover at two positions (A). (2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

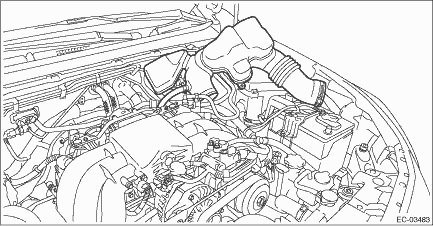

2. Disconnect the ground terminal from battery sensor. NOTE 3. Loosen the clamp (A) which connects the air intake boot. 4. Loosen the bolt (B) securing the air intake boot to the collector cover bracket.
5. Remove the air intake boot from the throttle body, and move the air intake boot to the left side wheel apron.

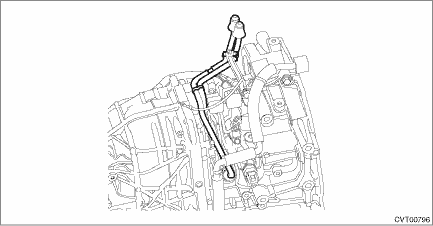

6. Remove the two air breather hoses.
7. Remove the oil cap.
|
Inspection

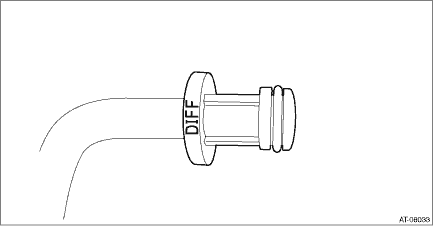

• Check the hose for peeling, crack or clogging.• Check the oil cap is not cracked or clogged.• Check O-ring of oil cap is not damaged. ...
