Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Forward clutch assembly / Removal

1. Remove the transmission from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

3. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

4. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

5. Remove the transfer reduction driven gear. Transfer Reduction Driven Gear > REMOVAL

6. Remove the intermediate case. Intermediate Case > REMOVAL

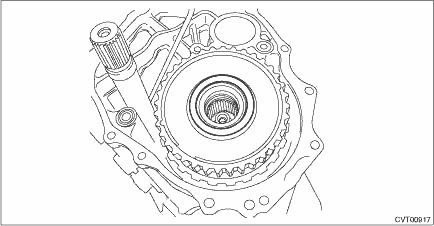

7. Remove the thrust needle bearing.

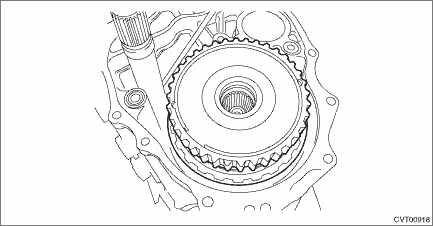

8. Remove the forward clutch assembly.

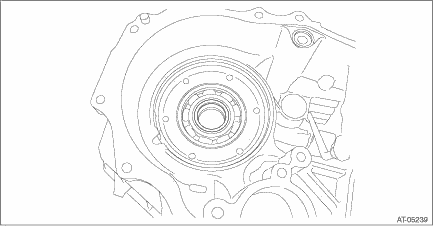

9. Remove the washer.

Adjustment

1. Measure depth “A” from the ST upper face to the washer catch surface.ST 398643600GAUGE2. Install the forward clutch assembly to intermediate case.3. Setting the ST, measure height &l ...
