Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Parking pawl / Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Shift the range select lever to “N” range.

3. Remove the extension case. Extension Case > REMOVAL

4. Remove the parking pawl shaft, return spring and parking pawl.

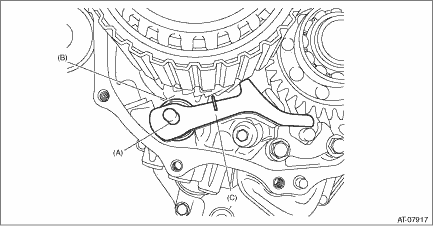

(A)	Parking pawl shaft
(B)	Return spring
(C)	Parking pawl

Inspection

• Check the parking pawl for breakage or damage.• Check the return spring for fatigue. ...
