Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Reduction driven gear / Removal

1. Remove the transmission from the vehicle. Automatic Transmission Assembly > REMOVAL

2. Remove the extension case. Extension Case > REMOVAL

3. Remove the rear drive shaft. Rear Drive Shaft > REMOVAL

4. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL

5. Remove the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > REMOVAL

6. Remove the intermediate case. Intermediate Case > REMOVAL

7. Remove the forward clutch assembly. Forward Clutch Assembly > REMOVAL

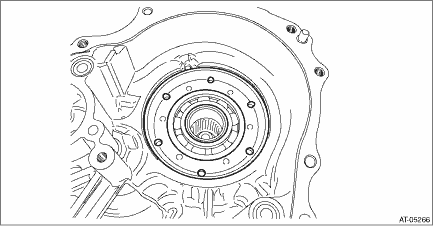

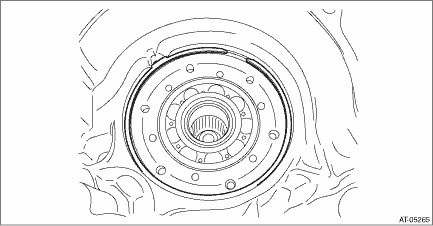

8. Remove the snap ring.

9. Remove the reduction driven gear assembly.

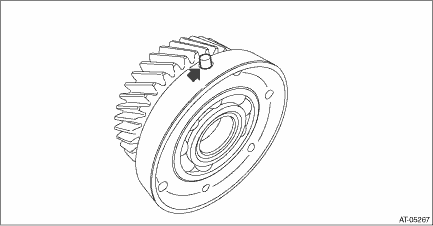

10. Remove the straight pin.

Adjustment

1. Measure clearance “A” between snap ring and transmission case.Specification:0.05 — 0.25 mm (0.002 — 0.01 in)2. If clearance “A” is out of standard, select the snap ring ...
