Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

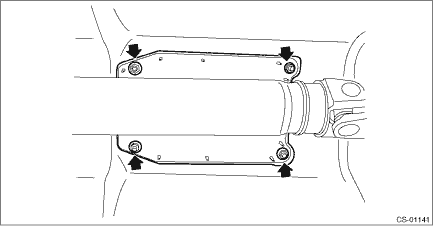

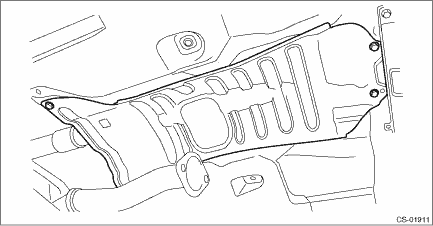

1. Disconnect the ground terminal from battery sensor. NOTE 2. Lift up the vehicle. 3. Remove the center exhaust pipe. Center Exhaust Pipe > REMOVAL 4. Remove the center exhaust cover.

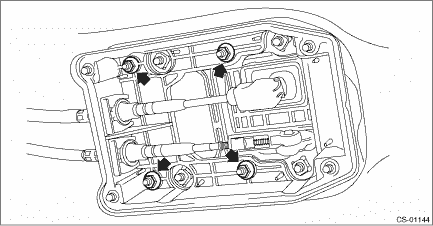

5. Remove the plate cable assembly.

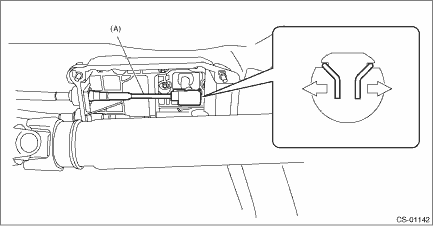

6. Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly. CAUTION: Be careful not to deform the cable inner.

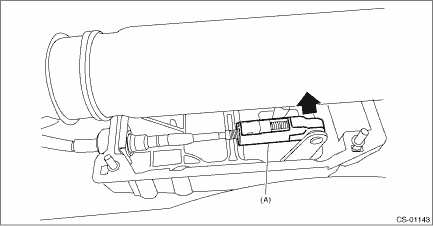

7. Remove the MT gear select cable from the gear shift lever assembly by pulling it in the direction of arrow in the figure. CAUTION: Be careful not to deform the cable inner.
8. Remove the cover cable assembly.

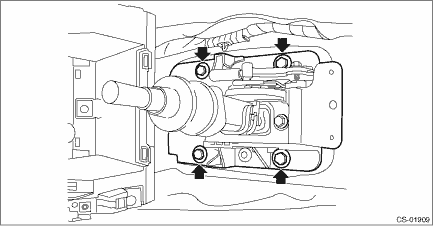

9. Lower the vehicle. 10. Remove the shift knob. 11. Remove the console front cover assembly and console box. Console Box > REMOVAL 12. Remove the console front side cover assemblies RH and LH. Console Box > REMOVAL 13. Remove the bolts, and then remove the gear shift lever assembly from the vehicle. NOTE: The MT gear shift lever cannot be disassembled.
|
Inspection
1. Check the parts for deformation, damage and wear. Repair or replace if necessary. Compare the removed parts with new parts to confirm if there are damages or not.2. Check that selecting to the reve ...
