Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Electronic throttle control relay / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

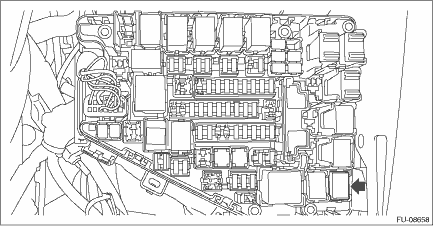

2. Remove the electronic throttle control relay from the main fuse box.

Electronic throttle control relay

...
