Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h6do) / Fuel pump relay / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

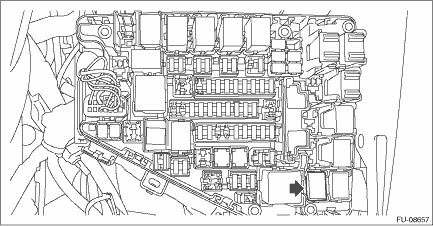

2. Remove the fuel pump relay from the main fuse box.

1. Check that the fuel pump relay has no deformation, cracks or other damages.2. Measure the resistance between fuel pump relay terminals.Terminal No.Standard1 and 21 M- or more3 and 4130.4 — 230.8 ...
