Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h4do) / Engine oil filter / Removal

1. OIL FILTER

CAUTION:

If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

NOTE:

Clean off water or dust from the oil element mating surface using air.

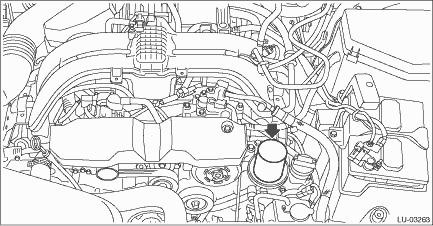

Remove the oil filter using a general tool (65/67 mm 14 Flutes).

2. OIL PUMP UNION

1. Remove the oil filter. Engine Oil Filter > REMOVAL

2. Remove the oil pump union from the chain cover.
