1. OIL PAN LOWER

1. Lift up the vehicle.

2. Remove the under cover. Front Under Cover > REMOVAL

3. Drain the engine oil. Engine Oil > REPLACEMENT

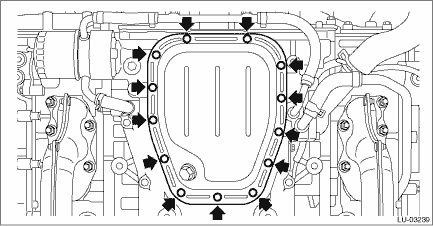

4. Remove the bolts securing the oil pan lower to the oil pan upper.

5. Insert an oil pan cutter blade into the gap between oil pan upper and oil pan lower, and remove the oil pan lower.

CAUTION:

Do not use a screwdriver or similar tool in place of oil pan cutter.

2. OIL PAN UPPER

For removing the oil pan upper, refer to “Cylinder Block”. Cylinder Block > REMOVAL

Inspection

Check that the oil pan upper and oil pan lower have no deformation, cracks or other damages. ...
