Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Intake (induction)(h4do) / Air cleaner case / Removal

1. Remove the air cleaner element. Air Cleaner Element > REMOVAL

2. Remove the bolts securing the air cleaner case (front) to the vehicle body.

3. Remove the air cleaner case (front).

NOTE:

The protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.

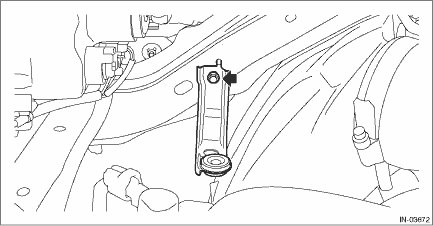

4. Remove the air cleaner case bracket from the vehicle.
