Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h4do) / Battery / Removal

1. BATTERY

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the battery sensor. Battery Sensor > REMOVAL

3. Disconnect the positive terminal of battery.

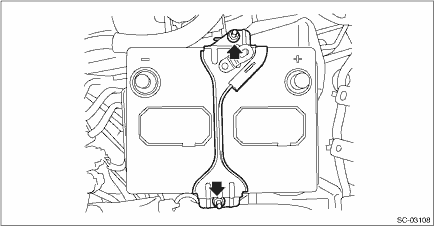

4. Remove the battery holder from the battery box.

5. Remove the battery and battery pan.

2. BATTERY BOX

1. Remove the battery. Battery > REMOVAL

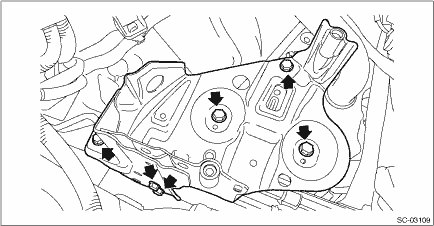

2. Remove the battery box.
