Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h6do) / Starter relay / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the instrument panel lower cover. Instrument Panel Lower Cover > REMOVAL

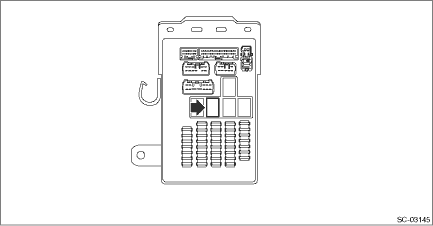

3. Remove the starter relay from relay block.

1. Check that the starter relay does not have deformation, cracks and any other damage.2. Measure the resistance between starter relay terminals.Terminal No.Standard1 and 21 M- or more3 and 4128.07 � ...
