Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

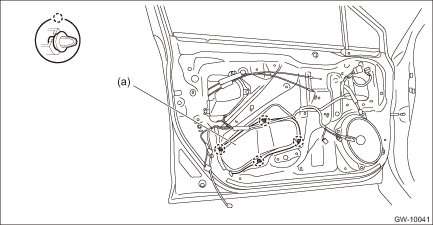

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE 2. Remove the trim panel - front door. Door Trim > REMOVAL 3. Remove the sealing cover - front door. Front Sealing Cover > REMOVAL 4. Remove the front door inner pad (a). CAUTION: If it is removed with an excessive force, the panel assembly - front door may be deformed. Also, if the clip is damaged, replace it with a new clip.

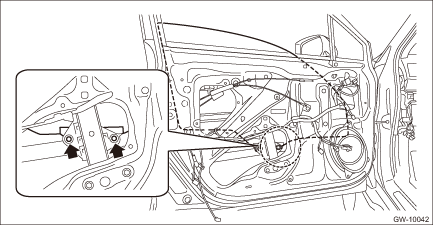

5. Connect the ground terminal to battery sensor. NOTE 6. Remove the glass assembly - front door. (1) Connect the switch - power window and then turn the ignition switch to ON. (2) Operate the switch - power window to move the glass assembly - front door to the position where the mounting bolts can be seen. (3) Remove the mounting bolts from the glass assembly - front door.

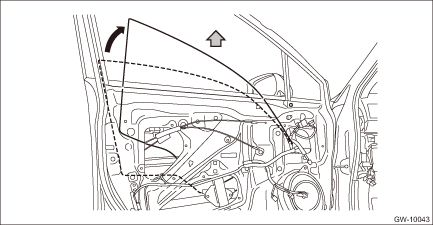

(4) While tilting the glass, remove the glass assembly - front door. CAUTION: Avoid impact and damage to the glass assembly - front door.

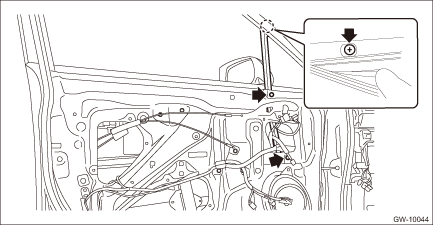

7. Remove the glass - front door partition. (1) Remove the bolts and screws, and then remove the running channel - front door and the sash assembly - partition.

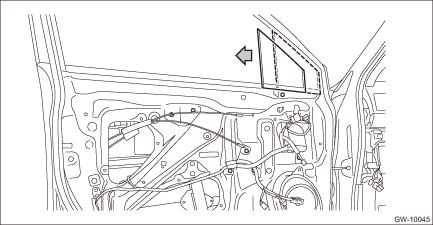

(2) Remove the glass - front door partition.
|
Front door glass
...
Installation
1. Install the glass - front door partition.2. Install the running channel - front door and the sash assembly - partition.CAUTION:Check that the running channel - front door is securely fixed to the p ...
