1. NORMAL MIRROR TYPE

CAUTION:

Be careful not to damage the mirror surface and windshield glass.

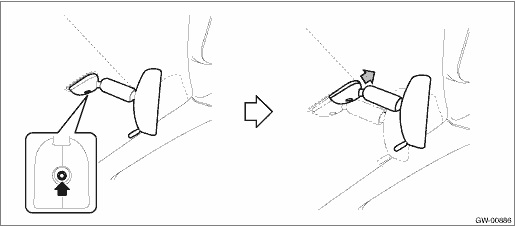

1. Remove the TORX® bolt, and slide the mirror assembly - inner rearview to remove.

Preparation tool:

TORX® T20

2. If the mirror mounting is damaged, replace the windshield glass.

2. HOME LINK TYPE

CAUTION:

Be careful not to damage the mirror surface and windshield glass.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the rearview mirror.

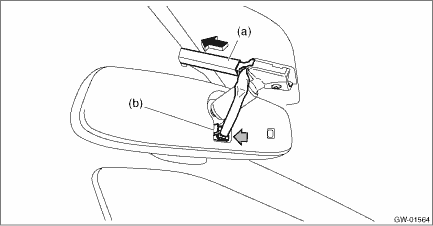

(1) Slide the upper section of the cover, and release the claws in the lower section, then remove the harness cover (a).

(2) Disconnect the rearview mirror connector (b).

CAUTION:

Be careful not to pull the harness.

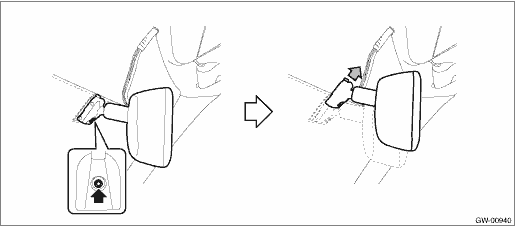

(3) Remove the TORX® bolt, and then slide the rear view mirror to remove.

Preparation tool:

TORX® T20

3. If the mirror mounting is damaged, replace the windshield glass.

Adjustment

CAUTION:• When the rearview mirror with compass and home link is removed or replaced, perform calibration and zone setting by following the procedures below.• The zone setting of the vehic ...
