1. FRONT

• Sedan model

Tire size		P225/55R17 P225/50R18
Wheel arch height (Tolerance: +12 mm −24 mm (+0.47 in −0.94 in))	mm (in)	397 (15.63)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		−0°15'
Caster (referential value)		5°50'
Steering angle (tolerance: ±1.5°)	Inner wheel	37.6°
Steering angle (tolerance: ±1.5°)	Outer wheel	32.8°
Toe-in	mm (in)	0±3 (0.00±0.12) Toe angle (sum of both wheels): 0°00'±0°15'
Kingpin angle (referential value)		13°55'

• OUTBACK model

Tire size		P225/65R17 P225/60R18
Wheel arch height (Tolerance: +12 mm −24 mm (+0.47 in −0.94 in))	mm (in)	468 (18.43)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		0°00'
Caster (referential value)		5°00'
Steering angle (tolerance: ±1.5°)	Inner wheel	38.6°
Steering angle (tolerance: ±1.5°)	Outer wheel	33.8°
Toe-in	mm (in)	0±3 (0.00±0.12) Toe angle (sum of both wheels): 0°00'±0°15'
Kingpin angle (referential value)		12°15'

2. REAR

• Sedan model

Tire size		P225/55R17 P225/50R18
Wheel arch height (Tolerance: +12 mm −24 mm (+0.47 in −0.94 in))	mm (in)	383 (15.08)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		−1°25'
Toe-in	mm (in)	3±3 (0.12±0.12) Toe angle (sum of both wheels): 0°15'±0°15'
Thrust angle (tolerance: ±0°30')		0°

• OUTBACK model

Tire size		P225/65R17 P225/60R18
Wheel arch height (Tolerance: +12 mm −24 mm (+0.47 in −0.94 in))	mm (in)	468 (18.43)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		−1°00'
Toe-in	mm (in)	3±3 (0.12±0.12) Toe angle (sum of both wheels): 0°14'±0°14'
Thrust angle (tolerance: ±0°30')		0°

NOTE:

• Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.

• Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.

• If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.

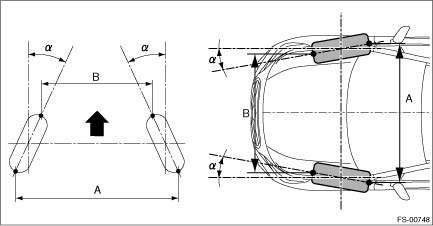

A − B = Positive: Toe-in, Negative: Toe-out

α = Individual toe angles
