SUBARU STARLINKTM Multimedia Plus audio set

The audio set will operate only when the ignition switch is in the "ACC" or "ON" position.

For details about how to use the SUBARU STARLINKTM Multimedia Plus audio set, refer to the 2016 Legacy/Outback SUBARU STARLINKTM Multimedia Plus and SUBARU STARLINKTM Multimedia Navigation Owner's Manual.

NOTE HD Radio Technology should be included as a feature in the SUBARU STARLINKTM Multimedia Plus audio set.

Base display audio set (if equipped)

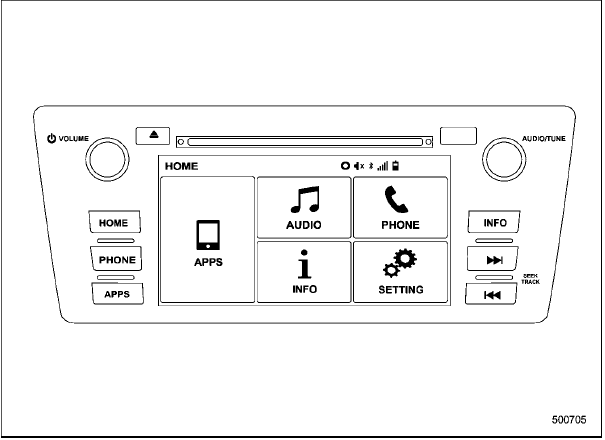

1) Power/VOLUME knob 2) Eject button 3) AUDIO/TUNE knob 4) HOME button 5) APPS button 6) Display 7) SEEK/TRACK buttons The audio set will operate only when the ignition switch is in the "A ...

Tips for operating the audio/visual system

CAUTION To avoid damage to the audio/visual system: Be careful not to spill beverages over the audio/visual system. Do not put anything other than an appropria ...
