Legacy

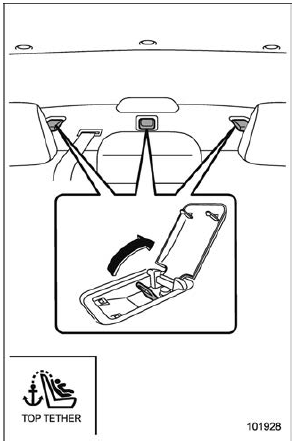

Tether anchorage location

Three tether anchorages are installed on the rear shelf behind the rear seat head restraint. Open the cover flap to use each anchorage.

Outback

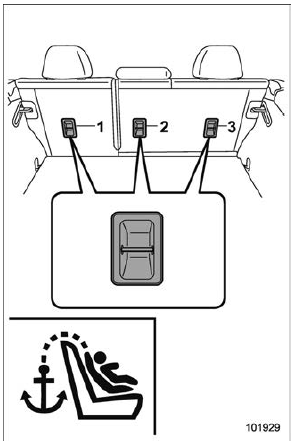

Tether anchorage location

For left seat
For center seat
For right seat

Three tether anchorages, i.e., ones for the right, center and left positions, are already installed on the back side of the rear seatback.
