Total trailer weight

The total trailer weight (trailer weight plus its cargo load) must never exceed the maximum total trailer weight. The maximum total trailer weight is indicated in the following tables.

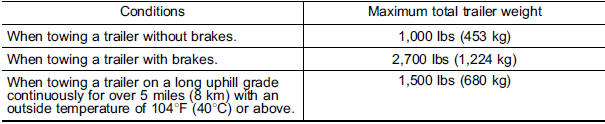

3.6 L models

3.6 L models

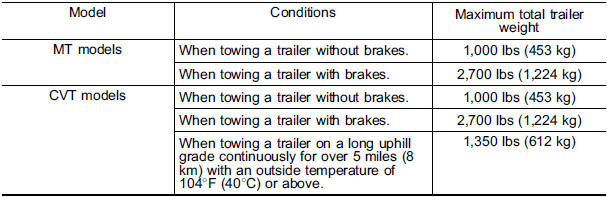

2.5 L models

2.5 L models
