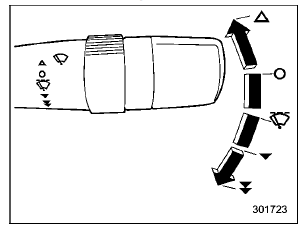

Windshield wipers

: Mist (for a single wipe)
: Off
: Intermittent
: Low speed
: High speed

To turn the wipers on, push the wiper control lever down.

To turn the wipers off, return the lever to the " " position.

For a single wipe of the wipers, push the lever up. The wipers operate until you release the lever.
