Subaru Legacy Service Manual: Installation

1. Temporarily install the drive plate and reinforcement drive plate.

2. Set the ST.

NOTE:

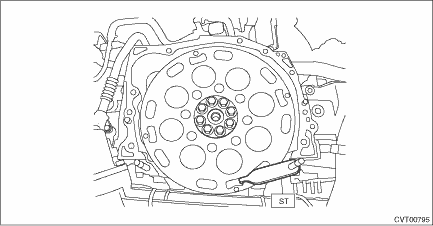

Set the ST to the drive plate referring to the illustration.

ST 498497300CRANKSHAFT STOPPER

3. Tighten the drive plate mounting bolt in two stages.

NOTE:

Fix the engine unit.

(1) Tighten the drive plate mounting bolt.

Tightening torque:

10 N·m (1.0 kgf-m, 7.4 ft-lb)

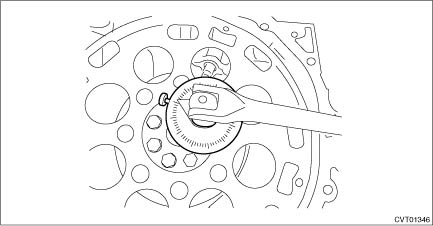

(2) While checking the tightening angle with the angle gauge, tighten the drive plate mounting bolts to the specified angle.

Tightening angle:

41° — 45°

4. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION
