Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Forward clutch assembly / Installation

1. Select a washer. Forward Clutch Assembly > ADJUSTMENT

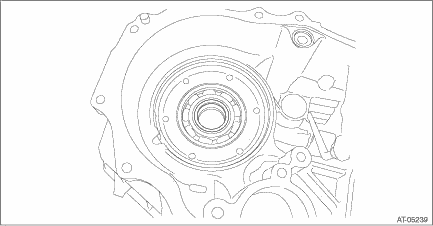

2. Install the selected washer.

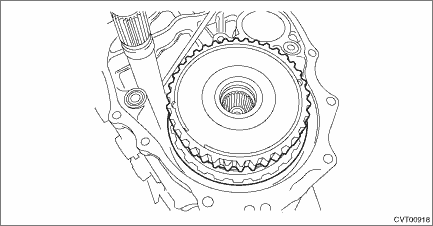

3. Install the forward clutch assembly.

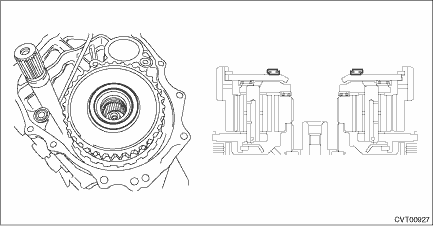

4. Install the thrust needle bearing.

NOTE:

Install the thrust needle bearing in the correct direction.

5. Install the intermediate case. Intermediate Case > INSTALLATION

6. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION

7. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

8. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

9. Install the extension case. Extension Case > INSTALLATION

10. Install the transmission to vehicle. Automatic Transmission Assembly > INSTALLATION

Adjustment

1. Measure depth “A” from the ST upper face to the washer catch surface.ST 398643600GAUGE2. Install the forward clutch assembly to intermediate case.3. Setting the ST, measure height &l ...

Inspection

• Check the forward clutch drum, internal gear, sun gear and forward clutch piston lip for wear or damage.• Inspect the drive plate facing for wear and damage.• Check the driven plat ...
