Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

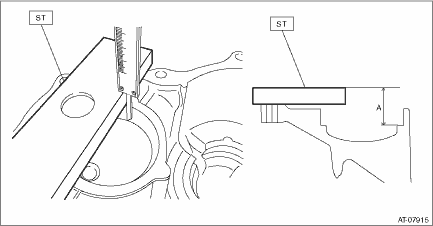

1. Measure depth “A” from the ST upper face to the ball bearing catch surface.

ST 398643600GAUGE

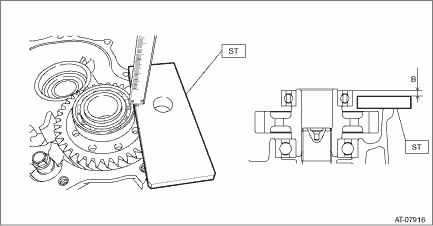

2. Measure height “B” from the ST to the end of the ball bearing outer ring.

ST 398643600GAUGE

3. Obtain the thickness of shim using the following formula to select none to two shims.

T mm = (A − 15) − (B + 15) − (0.05 — 0.25)

[T in = (A − 0.591) − (B + 0.591) − (0.002 — 0.01)]

T: Shim thickness

A: Depth from the ST upper face to the ball bearing catch surface

B: Height from the ST to the end of the ball bearing outer ring

15 mm (0.591 in): Thickness of ST

0.05 — 0.25 mm (0.002 — 0.01 in): Clearance

Shim

Part No.

Thickness mm (in)

31288AA190

0.2 (0.008)

31288AA200

0.3 (0.012)

31288AA210

0.5 (0.02)

Removal
1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL2. Remove the extension case. Extension Case > REMOVAL3. Remove the rear drive shaft. Rear Drive Shaft ...

Installation
1. Install the reduction driven gear assembly.2. Select shims. Transfer Reduction Driven Gear > ADJUSTMENT3. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION4. Install the rear d ...
