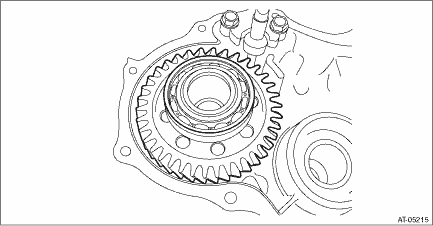

1. Install the reduction driven gear assembly.

2. Select shims. Transfer Reduction Driven Gear > ADJUSTMENT

3. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

4. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

5. Mount the selected shim onto ball bearing.

6. Install the extension case. Extension Case > INSTALLATION

7. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION
