Subaru Legacy BN/BS (2015-2019) Service Manual: Airbag system wiring diagram

Air conditioning system wiring diagram

1. MANUAL A/C2. AUTO A/C ...

Antenna cord location

1. WITHOUT TELEMATICSConnectorConnecting toNo.PoleColorAreaNo.DescriptionAN13A-2 Audio (sedan model without navigation)3C-2 Audio (outback model without navigation)3A-2 Navigation unit (sedan model wi ...

Other materials:

Dtc b16eb side airbag sensor lh initialization error

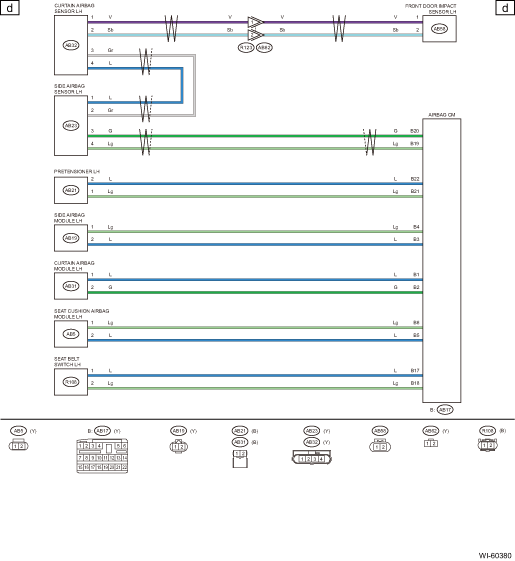

DIAGNOSIS START CONDITION:Ignition voltage is 10 V to 16 V.DTC DETECTING CONDITION:Side airbag sensor LH initialization errorWIRING DIAGRAM:NOTE:For the coupling connector, refer to “WIRING SYSTEM”.Airbag system Airbag System > WIRING DIAGRAMSTEPCHECKYESNO1.CHECK POOR CONTACT OF CONNECT ...
