NOTE:

If the brake hose is disconnected, air enters inside. Therefore, this operation should be performed on the vehicle without the brake hose disconnected.

1. Check each part. Rear Disc Brake Assembly > INSPECTION

2. Install the bushing.

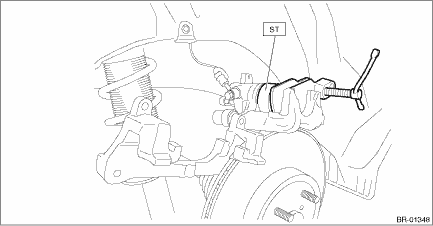

3. Using the ST, install the piston boot.

Preparation tool:

ST: PISTON BOOT INSTALLER (99099AL000)

Grease:

Nippon Grease NIGLUBE RX-2

Removal

CAUTION:• Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.• Prepare a container to catch ...

NOTE:Before installation, remove mud and foreign matter from the disc brake assembly.1. Check each part. Rear Disc Brake Assembly > INSPECTION2. Install the support - rear disc brake to the housing a ...
