1. Before assembly, inspect the following items and replace any faulty part with a new one.

• Visually check the lateral link assembly - front for damage and deformation.

• Visually check the bushing for abnormal cracks, fatigue or damage.

• Visually check the dust cover on the ball joint for damage.

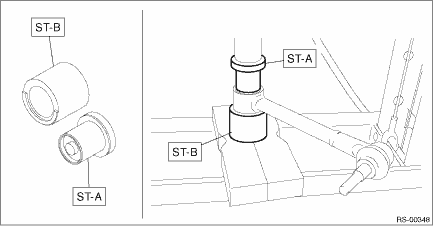

2. Using the ST, press the bushing into place.

CAUTION:

Make sure to press the bushing straight in.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20299AE000)

Removal

1. Lift up the vehicle, and then remove the rear wheels.2. Remove the trailing link. Rear Trailing Link > REMOVAL3. Remove the lateral link assembly - front.(1) Remove the snap pin (a) and nut (b).(2 ...

Installation

CAUTION:• For parts which are not reusable, always use new parts.• Always tighten the bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the g ...
