1. Press-fit the dust cover into extension case.

2. Install the extension case oil seal to extension case. Differential Side Retainer Oil Seal > REPLACEMENT

3. Install all plugs.

NOTE:

• Use a new O-ring or a gasket.

• Apply CVTF to the O-rings.

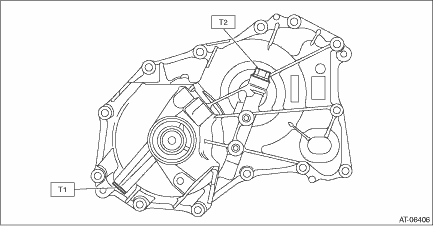

Tightening torque:

T1: 22 N·m (2.2 kgf-m, 16.2 ft-lb)

T2: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

Disassembly

1. Remove the dust cover from extension case.2. Remove the extension case oil seal from the extension case. Differential Side Retainer Oil Seal > REPLACEMENT3. Remove all plugs. ...
