1. Install the hub unit COMPL - rear axle to the ST securely.

Preparation tool:

ST: HUB STAND (28099PA080)

(1)	Hub unit COMPL - rear axle

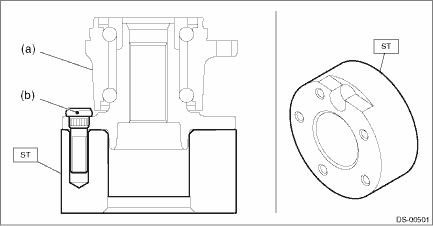

2. Using a press, press new bolts - hub (b) until their seating surfaces contact the hub unit COMPL - rear axle (a).

NOTE:

Use the 12 mm (0.47 in) dia. holes in the HUB STAND to prevent bolts from tilting.
