1. Before assembly, inspect the following items and replace any faulty part with a new one.

• Visually check the lateral link assembly - rear for damage and deformation.

• Visually check the bushing for abnormal cracks, fatigue or damage.

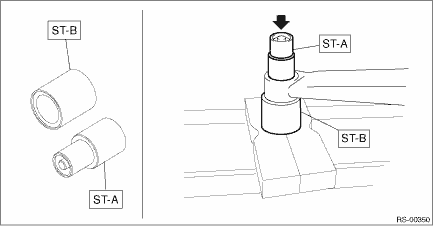

2. Using the ST, press the bushing into place.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20299AE010)
