The center console box provides a storage space.

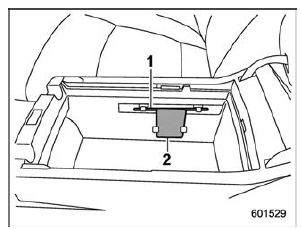

Center console

1) Coin tray
2) Accessory tray

The lid located inside the center console can be used as a coin tray or an accessory tray for small items.

Center console

1) Pen holder
2) Card holder

When the lid inside the center console is removed, you can use the center console as a pen holder or a card holder.

The top of the console can be used as an armrest.
