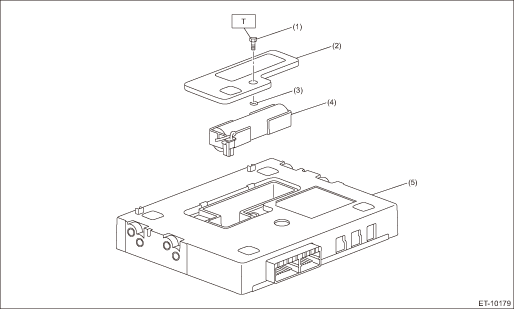

1. DATA COMMUNICATION MODULE

(1)

Cap screw

(4)

Backup battery

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Backup battery cover

(5)

Data communication module

T:

0.3 (0.03, 0.2)

(3)

Circlip

Location
1. AUDIO AND NAVIGATION SYSTEM(1)Speaker ASSY - tweeter LH(3)Speaker ASSY - tweeter RH(5)Satellite switch assembly(2)Speaker ASSY - center(4)Audio ASSY or navigation ASSY (A)Sedan model(B)OUTBACK mod ...

Gps antenna
...
