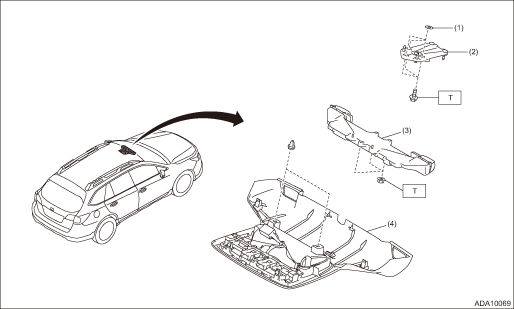

1. STEREO CAMERA

(1)

Shim (washer)

(3)

Stereo camera

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Camera plate

(4)

Stereo camera cover ASSY

T:

5.5±1.0 (0.56±0.10, 4.1±0.7)

Location
Refer to “LOCATION” of “EyeSight (DIAGNOSTICS)” section. Electrical Component Location > LOCATION ...
