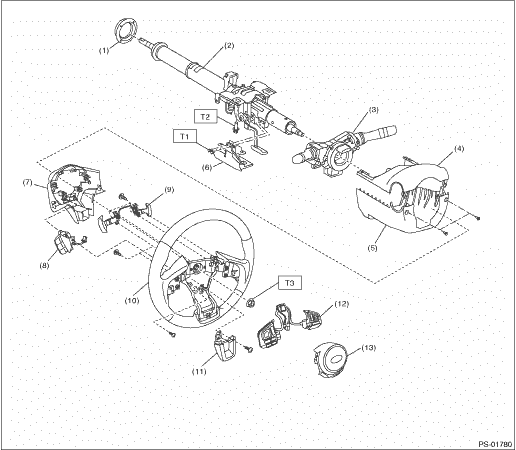

Subaru Legacy BN/BS (2015-2019) Service Manual: Component

(1)

Bushing

(7)

Cover - steering wheel LWR

(13)

Airbag module

(2)

Column ASSY - steering

(8)

MID switch (multi-information display)

(3)

Switch ASSY - combination

(9)

Paddle shift

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Cover ASSY - column UPR

(10)

Steering wheel

T1:

4 (0.4, 3.0)

(5)

Cover ASSY - column LWR

(11)

Cover - spoke

T2:

20 (2.0, 14.8)

(6)

Knee protector

(12)

Satellite switch

T3:

39 (4.0, 28.8)

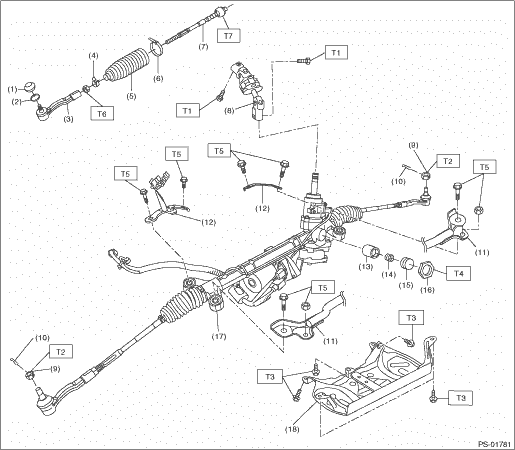

(1)

Dust seal

(10)

Cotter pin

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Clip - boot tie-rod end

(11)

Crossmember support - front

T1:

24 (2.4, 17.7)

(3)

Tie-rod end

(12)

Stiffener

T2:

27 (2.8, 19.9)

(4)

Clip - boot tie-rod

(13)

Sleeve

T3:

30 (3.1, 22.1)

(5)

Boot - steering gearbox

(14)

Spring - gearbox

T4:

45 (4.6, 33.2)

(6)

Band - boot

(15)

Adjusting screw

T5:

60 (6.1, 44.3)

(7)

Tie-rod

(16)

Lock nut

T6:

85 (8.7, 62.7)

(8)

Universal joint ASSY - steering

(17)

Steering gearbox ASSY

T7:

90 (9.2, 66.4)

(9)

Castle nut

(18)

Guard
