Subaru Legacy BN/BS (2015-2019) Service Manual: Component

Subaru Legacy BN/BS (2015-2019) Service Manual / Wheel and tire system / General description / Component

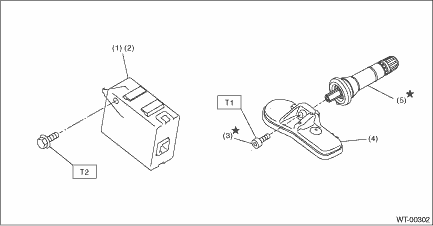

(1)	TPMS & keyless entry control module (model without keyless access with push button start system)	(4)	Transmitter (snap in type)	Tightening torque: N·m (kgf-m, ft-lb)
(2)	TPMS CM (model with keyless access with push button start system)	(5)	Valve	T1:	1.4 (0.1, 1.0)
(3)	Screw			T2:	7.5 (0.8, 5.5)

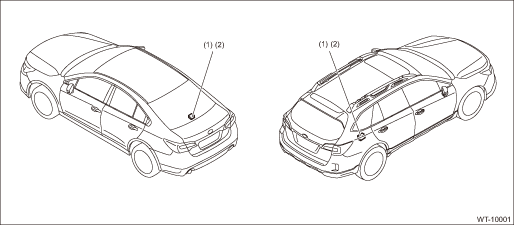

(1)

TPMS & keyless entry control module (model without keyless access with push button start system)

(2)

TPMS module ASSY (model with keyless access with push button start system)

Specification

(1)Inset(2)P.C.D.• Sedan modelTire sizeWheel sizeInsetmm (in)P.C.D.mm (in)Tire inflation pressure kPa(kgf/cm2, psi)Front wheelRear wheel225/50R18 95H18 - 71/2J55 (2.17)114.3 (4.50)230 (2.3, 33)2 ...

1. GENERAL TOOLTOOL NAMEREMARKSAir pressure gaugeUsed for measuring tire air pressure.Dial gaugeUsed for measuring wheel runout.Wheel balancerUsed for adjusting wheel balance.Circuit testerUsed for me ...
