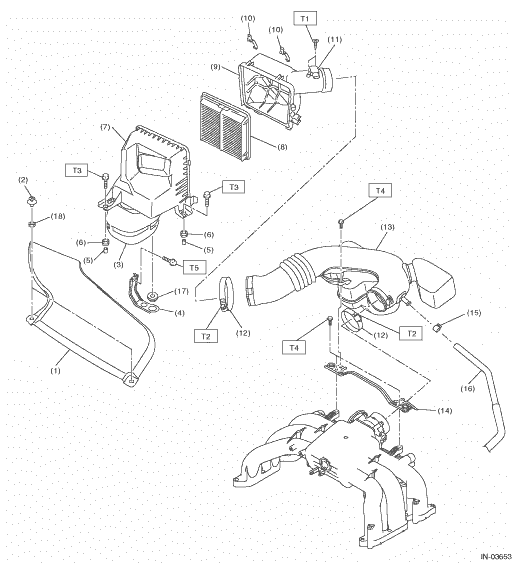

Subaru Legacy BN/BS (2015-2019) Service Manual: Component

(1)

Air intake duct

(10)

Clip

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Clip

(11)

Mass air flow and intake air temperature sensor

T1:

1 (0.1, 0.7)

(3)

Resonator chamber

(12)

Clamp

T2:

3 (0.3, 2.2)

(4)

Air cleaner case bracket

(13)

Air intake boot

T3:

6 (0.6, 4.4)

(5)

Spacer

(14)

Collector cover bracket

T4:

6.5 (0.7, 4.8)

(6)

Cushion

(15)

Clip

T5:

7.5 (0.8, 5.5)

(7)

Air cleaner case (front)

(16)

Blow-by hose

(8)

Air cleaner element

(17)

Cushion

(9)

Air cleaner case (rear)

(18)

Cushion
