Subaru Legacy BN/BS (2015-2019) Service Manual: Component

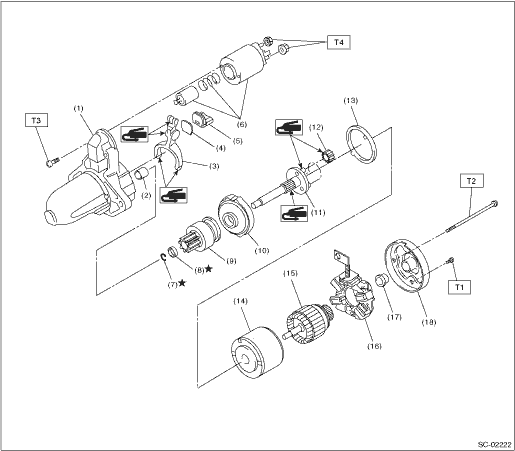

(1)

Starter housing ASSY

(9)

Overrunning clutch

(17)

Sleeve bearing

(2)

Sleeve bearing

(10)

Internal gear ASSY

(18)

Starter cover ASSY

(3)

Shift lever

(11)

Shaft

(4)

Plate

(12)

Pinion gear

Tightening torque: N·m (kgf-m, ft-lb)

(5)

Seal rubber

(13)

Seal rubber

T1:

1.4 (0.1, 1.0)

(6)

Magnet switch ASSY

(14)

Yoke ASSY

T2:

6 (0.6, 4.4)

(7)

Snap ring

(15)

Armature ASSY

T3:

7.5 (0.8, 5.5)

(8)

Stopper

(16)

Brush holder ASSY

T4:

10 (1.0, 7.4)

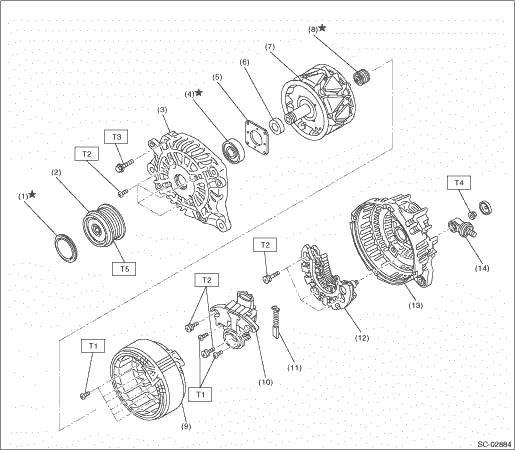

(1)

Cap

(8)

Bearing

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Pulley

(9)

Stator coil

T1:

2 (0.2, 1.5)

(3)

Front cover

(10)

IC regulator

T2:

3.9 (0.4, 2.9)

(4)

Ball bearing

(11)

Brush

T3:

4.4 (0.4, 3.2)

(5)

Bearing retainer

(12)

Rectifier

T4:

8.9 (0.9, 6.6)

(6)

Spacer

(13)

Rear cover

T5:

108 (11.0, 79.8)

(7)

Rotor

(14)

Terminal B

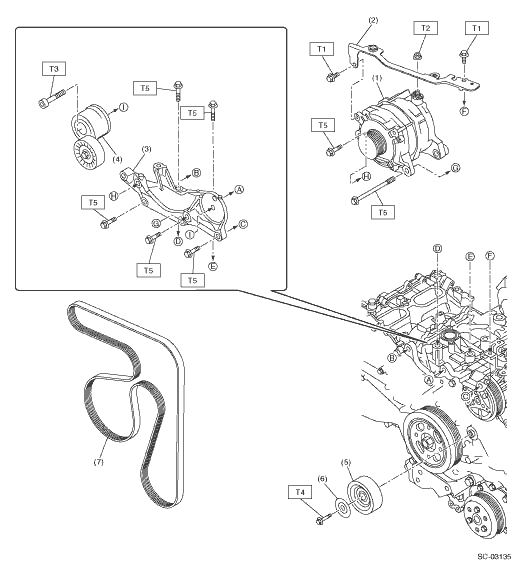

(1)

Generator

(7)

V-belt

Tightening torque: N·m (kgf-m, ft-lb)

(2)

V-belt cover bracket

T1:

6.4 (0.7, 4.7)

(3)

Generator bracket

T2:

15 (1.5, 11.1)

(4)

V-belt tensioner ASSY

T3:

25 (2.5, 18.4)

(5)

Idler pulley

T4:

36 (3.7, 26.6)

(6)

Idler pulley cover

T5:

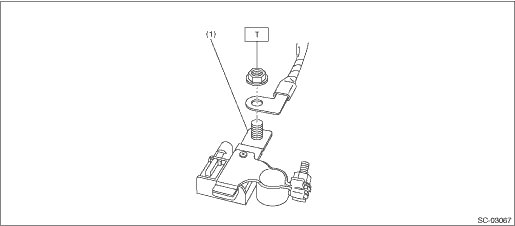

Generator > INSTALLATION

(1)

Battery sensor

Tightening torque: N·m (kgf-m, ft-lb)

T:

7.5 (0.8, 5.5)
