Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Converter case / Disassembly

1. Remove the transmission hanger and transmission radio ground cord, if mounted.

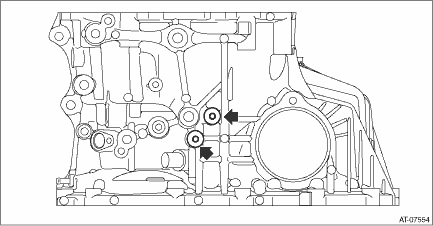

2. Remove the oil drain plug and overflow drain plug. Differential Gear Oil > REPLACEMENT

3. Remove all plugs.

Inspection

• Check for leakage of CVTF from the connection between converter case and transmission case.• Check there is no damage or cracks on the converter case. ...

Assembly

1. Install the oil drain plug and overflow drain plug.NOTE:Overflow plug of differential gear oil is temporarily attached.2. Install all plugs.NOTE:Use new O-rings.Tightening torque:25 N·m (2.5 ...
