Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Oil pump chain / Disassembly

1. DRIVE SPROCKET

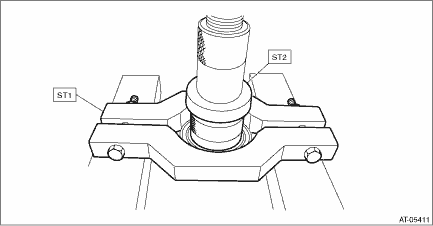

1. Remove the ball bearing using ST.

ST1 498077600

REMOVER

ST2 399513600

INSTALLER

Inspection

• Check the oil pump chain for damage.• Replace if gear teeth are broken, damaged, sharpen or excessively worn.• Check the bearing for seizure or wear.• Apply CVTF to bearing a ...
