Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

1. Place alignment marks on the shaft and outer race.

2. Remove the PTJ boot band and boot.

CAUTION:

Be careful not to damage the boot.

3. Remove the snap ring from PTJ outer race.

4. Remove the PTJ outer race from shaft assembly.

5. Wipe off grease.

CAUTION:

The grease is a special type of grease. Do not mix with other grease.

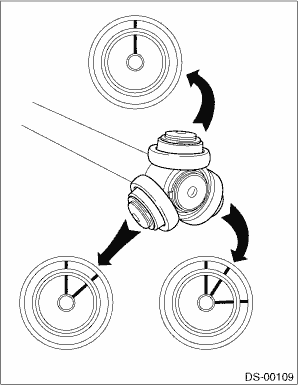

6. Place alignment marks on the roller kit and trunnion.

7. Remove the roller kit from trunnion.

CAUTION:

Be careful with the roller kit position.

8. Place alignment marks on the trunnion and shaft.

9. Remove the snap ring and trunnion.

CAUTION:

Be sure to wrap shaft splines with vinyl tape to protect the boot from scratches.

10. Remove the PTJ boot.

11. Remove the O-ring from the groove of the shaft.

NOTE:

The EBJ is a non-disassembly part, so the axle disassembly stops here.

Inspection
Check the removed parts for damage, wear, corrosion etc. If faulty, repair or replace.• PTJ (pillow tripod joint)Check for seizure, corrosion, damage, wear and excessive play.• EBJ (high-e ...
