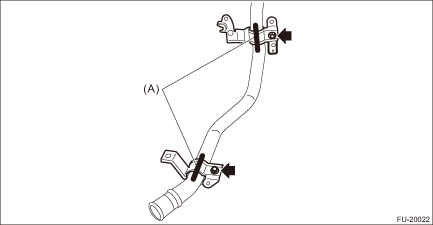

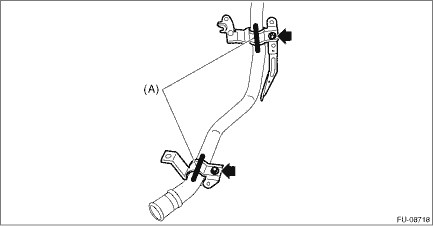

1. Using a marker pen, make alignment marks (A) on the fuel filler pipe and the fuel filler pipe bracket.

2. Remove the fuel filler pipe bracket from the fuel filler pipe.

• With protector

• Without protector

Inspection

1. Check that the fuel filler pipe does not have deformation, cracks or other damages.2. Check that the fuel hose has no cracks, damage or loose part. ...
