Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

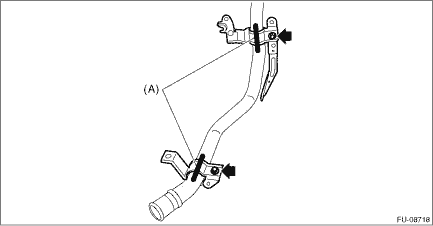

1. Using a marker pen, make alignment marks (A) on the fuel filler pipe and the fuel filler pipe bracket. 2. Remove the fuel filler pipe bracket from the fuel filler pipe. • With protector

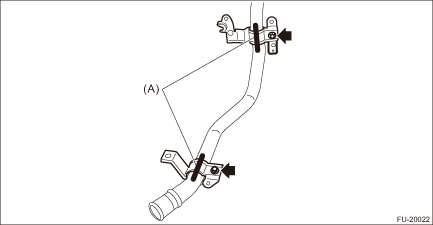

• Without protector
|
Inspection
1. Check that the fuel filler pipe does not have deformation, cracks or other damages.2. Check that the fuel hose has no cracks, damage or loose part. ...
