Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Hvac system (heater ventilator and a c) / Blower resistor (manual a c model) / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

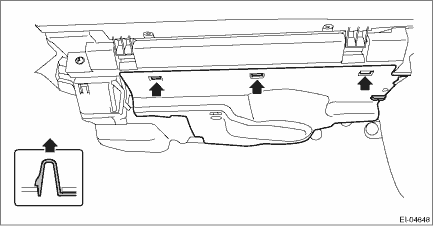

2. Release the hook, and remove the under cover assembly - passenger.

3. Remove the blower resistor.

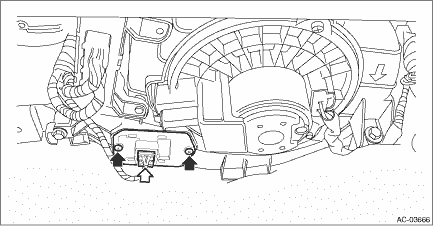

(1) Disconnect the connector.

(2) Remove the screw and remove the blower resistor.

Blower resistor (manual a c model)

...

Inspection

1. Measure the resistance between connector terminals.Preparation tool: Circuit testerTerminal No.Inspection conditionsStandard4 — 2AlwaysApprox. 0.44 -4 — 3Approx. 1.12 -4 — 1Approx. 2.92 -2. R ...
