Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

CAUTION:

Use gloves to avoid damage and putting fingerprints on the lens surface and meter surfaces.

Be sure not to touch the meter indicator needle.

Because LEDs are used for all of warning lights and indicator lights, they are not removable from the meter - main assembly.

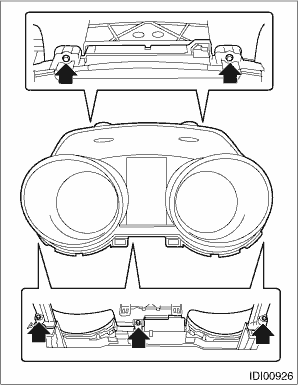

1. Remove the screws, and then remove the outer mask.

Preparation tool:

TORX® T10

2. Release the claws and remove the lens.

Installation
CAUTION:• Make sure the electrical connector is connected securely.• Make sure that each meter operates normally.• When the combination meter assembly of the model without keyless ac ...

Combination meter system
...

Other materials:

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS — (Newly adopted tool)SUBARU SELECT MONITOR 4Used for setting of each function and troubleshooting for electrical system.NOTE:For detailed operation procedures of Subaru Select Monitor 4, refer to “Application help”.2. GENERAL TO ...
