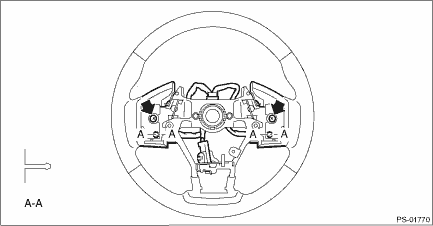

1. Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)

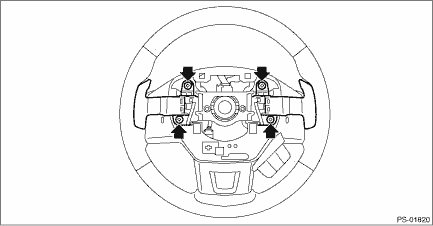

2. Release the claws and remove the screws, then detach the cover - spoke.

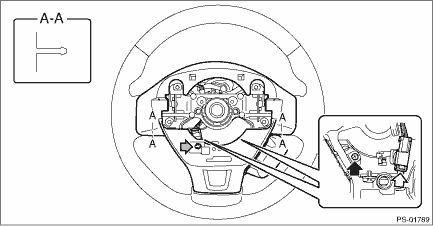

3. Remove connector and screw, and remove the cover - steering wheel LWR.

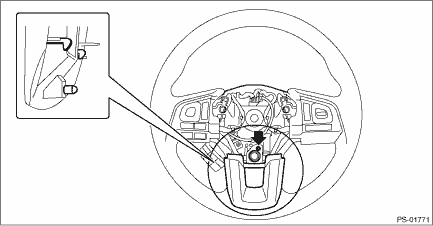

4. Release the claws and remove the screws, then detach the satellite switch.

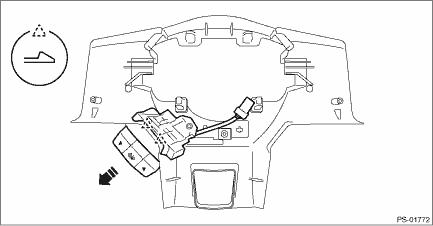

5. Release the claws, and then remove the MID switch.

Inspection

1. PADDLE SHIFT SWITCH1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsStandard3 — 4Operate the + side of paddle shift assembly a ...
