1. PADDLE SHIFT SWITCH

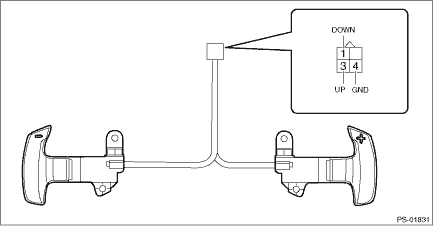

1. Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Terminal No.	Inspection conditions	Standard
3 — 4	Operate the + side of paddle shift assembly and hold it.	Less than 10 -
1 — 4	Operate the − side of paddle shift assembly and hold it.	Less than 10 -
1 — 4 3 — 4	Do not operate the paddle shift assembly.	Is the resistance 1 M- or more-

2. Replace the paddle shift switch if the inspection result is not within the standard value.

2. SATELLITE SWITCH ASSEMBLY

Refer to “Steering Satellite Switch” of “ENTERTAINMENT” section. Switches and Harness > INSPECTION

3. SWITCH ASSEMBLY - STEERING

Refer to “Steering Switch” of “INSTRUMENTATION/DRIVER INFO” section. Switches and Harness > INSPECTION

Installation

CAUTION:• Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION• ...

1. Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)2. Release the claws and remove the screws, then detach the cover - spoke.3. Remove connector ...
