Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

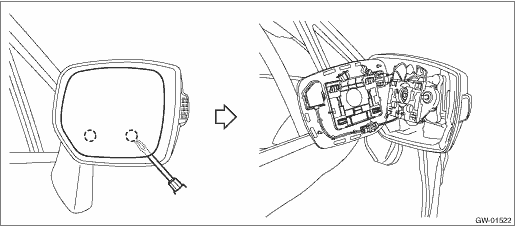

CAUTION: • When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver. • When removing the mirror - repair, insert the connector and clip securely. 1. Operate the remote control mirror switch to face the mirror - repair upward. 2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. NOTE 3. Remove the mirror - repair. (1) Using a flat tip screwdriver or similar tool, release the engagement shown in the figure, and slide the mirror - repair downward to remove.

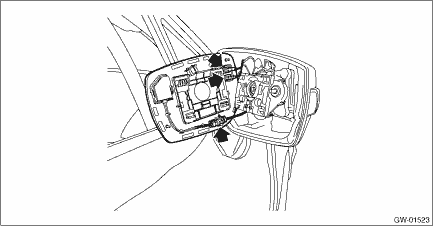

(2) Disconnect connectors. (Model with mirror heater and Subaru Rear Vehicle Detection system)

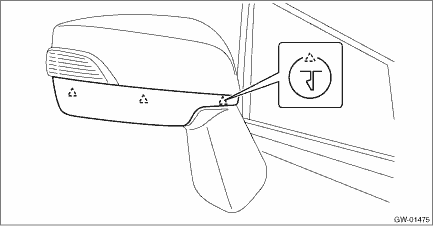

4. Release the claws, and then remove the cover - cap outer mirror lower.

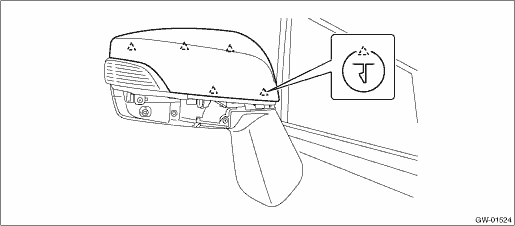

5. Release the claws, and then remove the cover - cap outer mirror. CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

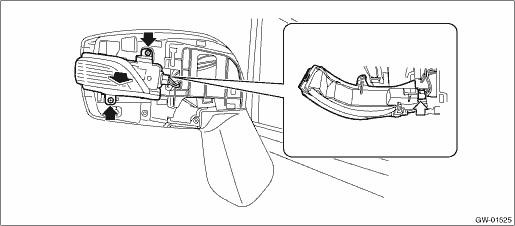

6. Remove the light assembly - side turn mirror. (Model with side turn signal light) (1) Remove the screws and pull out the light assembly - side turn mirror to the front of the vehicle. (2) Disconnect the connector and remove the light assembly - side turn mirror.
|
Inspection
1. CHECK OPERATION1. Check the mirror operation when battery voltage is applied between the connector terminals.Terminal No.Inspection conditionsSwitch position — — OFF4 (+) — 3 (−)Apply ...
