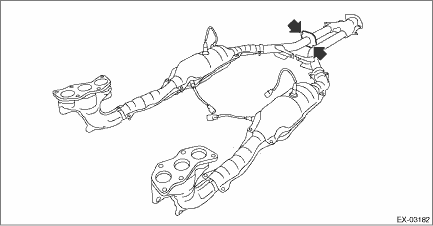

1. Separate the front exhaust pipe (RH) from the front exhaust pipe (LH).

2. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe assembly. Front Oxygen (A/F) Sensor > REMOVAL Rear Oxygen Sensor > REMOVAL

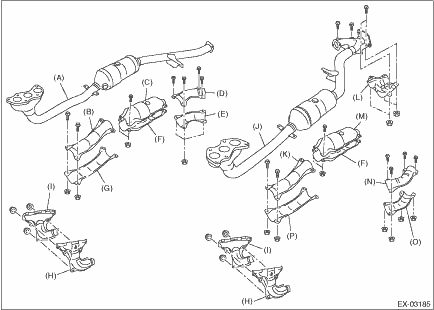

3. Remove each cover from the front exhaust pipe.

(A)

Front exhaust pipe (RH)

(G)

Front exhaust pipe lower cover (RH) (front)

(M)

Catalytic converter upper cover (LH)

(B)

Front exhaust pipe upper cover (RH) (front)

(H)

Front exhaust pipe cover (LH)

(N)

Front exhaust pipe upper cover (LH) (rear)

(C)

Catalytic converter upper cover (RH)

(I)

Front exhaust pipe cover (RH)

(O)

Front exhaust pipe lower cover (LH) (rear)

(D)

Front exhaust pipe upper cover (RH) (rear)

(J)

Front exhaust pipe (LH)

(P)

Front exhaust pipe lower cover (LH) (front)

(E)

Front exhaust pipe lower cover (RH) (rear)

(K)

Front exhaust pipe upper cover (LH) (front)

(F)

Catalytic converter lower cover

(L)

Protector
Inspection
1. Check the connections and welded parts for exhaust leaks.2. Make sure there are no holes or rusting. ...
