Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

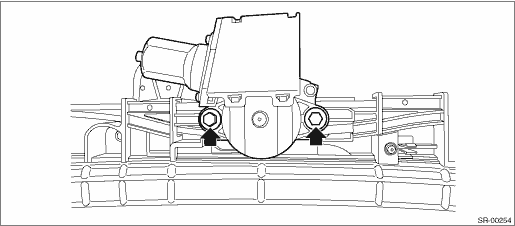

1. Remove the bolt, and then remove the motor assembly - sunroof.

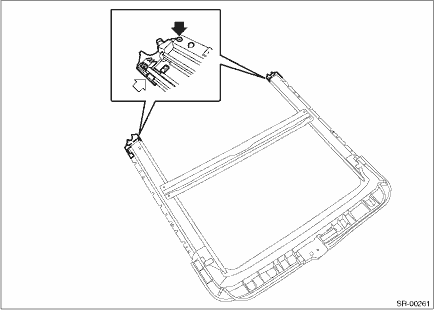

2. Remove the screws and release the claws, then detach the drain holder.

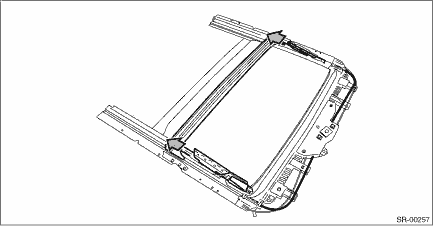

3. Remove the sunshade assembly together with the cable assembly from the rail assembly - sunroof.
|
Installation
CAUTION:Be careful not to snag the harness.1. Install each connector and the drain tube - sunroof.Tightening torque:Connector holder: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb)Ground bolt: 13 N·m (1 ...
Other materials:
Inspection
1. Remove the bulkhead harness connector from TCM. Transmission Control Module (TCM) > REMOVAL2. Set the ST between the TCM and bulkhead harness.ST 18460AA040CHECK BOARD3. Set the probe of oscilloscope to the check board connector.Terminals:No. 12 (+) — No. 26 (−)(A)+ probe(B)− pro ...
