Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Sunroof t-top convertible top (sunroof) / Sunroof assembly / Installation

CAUTION:

Be careful not to snag the harness.

1. Install each connector and the drain tube - sunroof.

Tightening torque:

Connector holder: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

Ground bolt: 13 N·m (1.3 kgf-m, 9.6 ft-lb)

2. Install the cover side sill - front and the front cover - side sill.

3. Install the rail assembly - sunroof.

Tightening torque:

6 N·m (0.6 kgf-m, 4.4 ft-lb)

4. Install the curtain airbag module. Curtain Airbag Module > INSTALLATION

5. Connect the harness connector of the drain tube - sunroof and the motor assembly.

CAUTION:

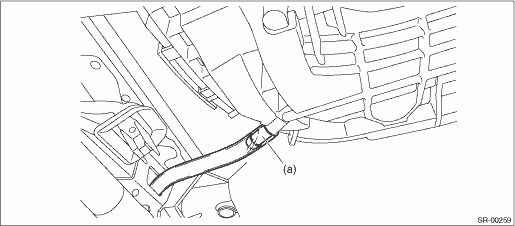

Insert the four drain tubes 15 mm (0.59 in) or more into the drain pipes (a).

6. Install the trim panel - roof assembly. Roof Trim > INSTALLATION

7. Install the lid assembly - sunroof.

Tightening torque:

4.5 N·m (0.5 kgf-m, 3.3 ft-lb)

8. Connect the ground terminal to battery sensor. NOTE

Assembly

1. Insert the cable assembly and sunshade assembly into the rail assembly - sunroof.2. Install the drain holder.3. Using a flat tip screwdriver wrapped with protective tape, move the link - drain sunr ...

Disassembly

1. Remove the bolt, and then remove the motor assembly - sunroof.2. Remove the screws and release the claws, then detach the drain holder.3. Remove the sunshade assembly together with the cable assemb ...
